Arduino Based Weather Station

A functional weather station (measuring temperature and humidity) was developed using sensors and an Arduino board.

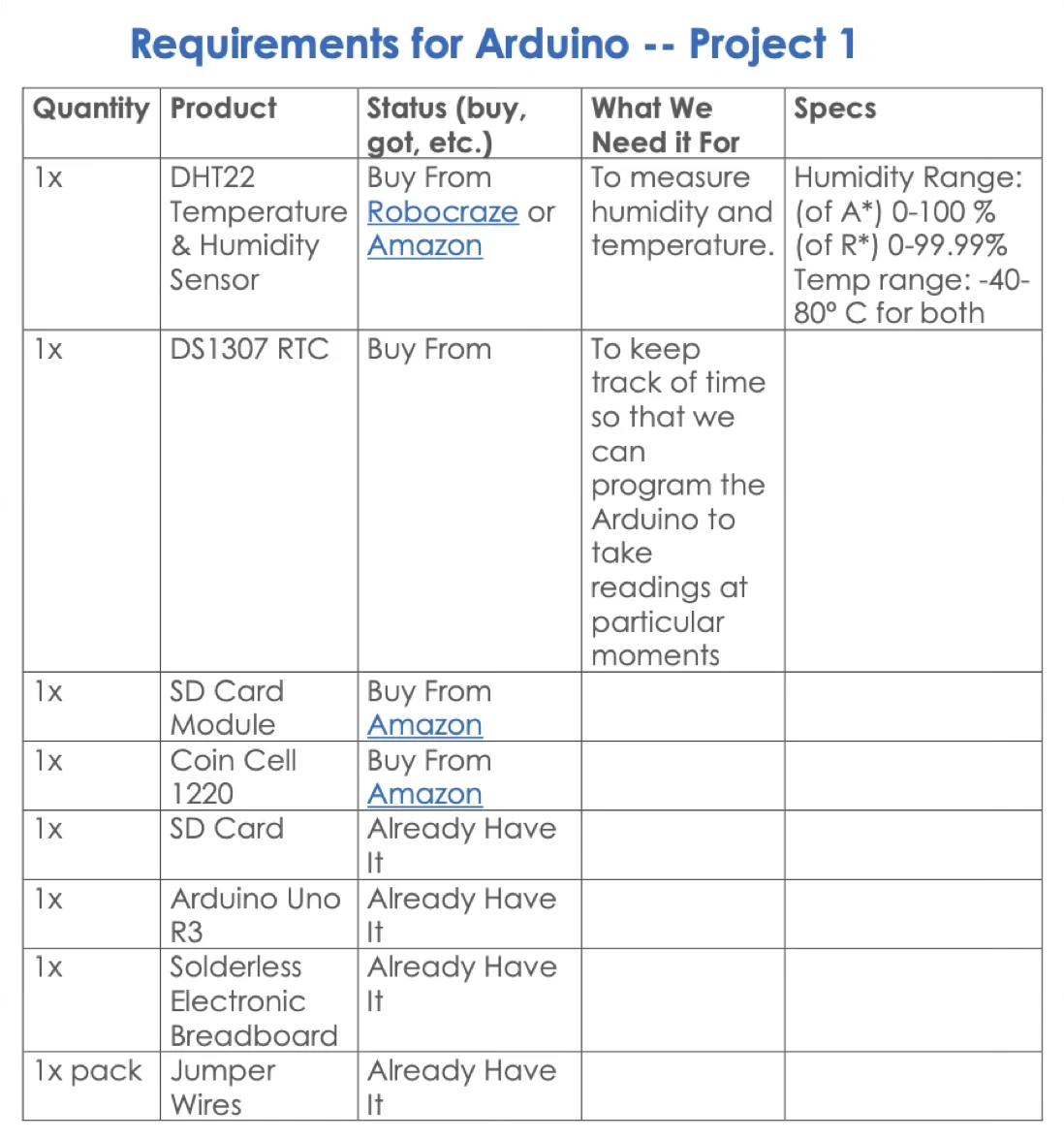

weather-station-02-project-requirements-bom
Project requirements - BOM

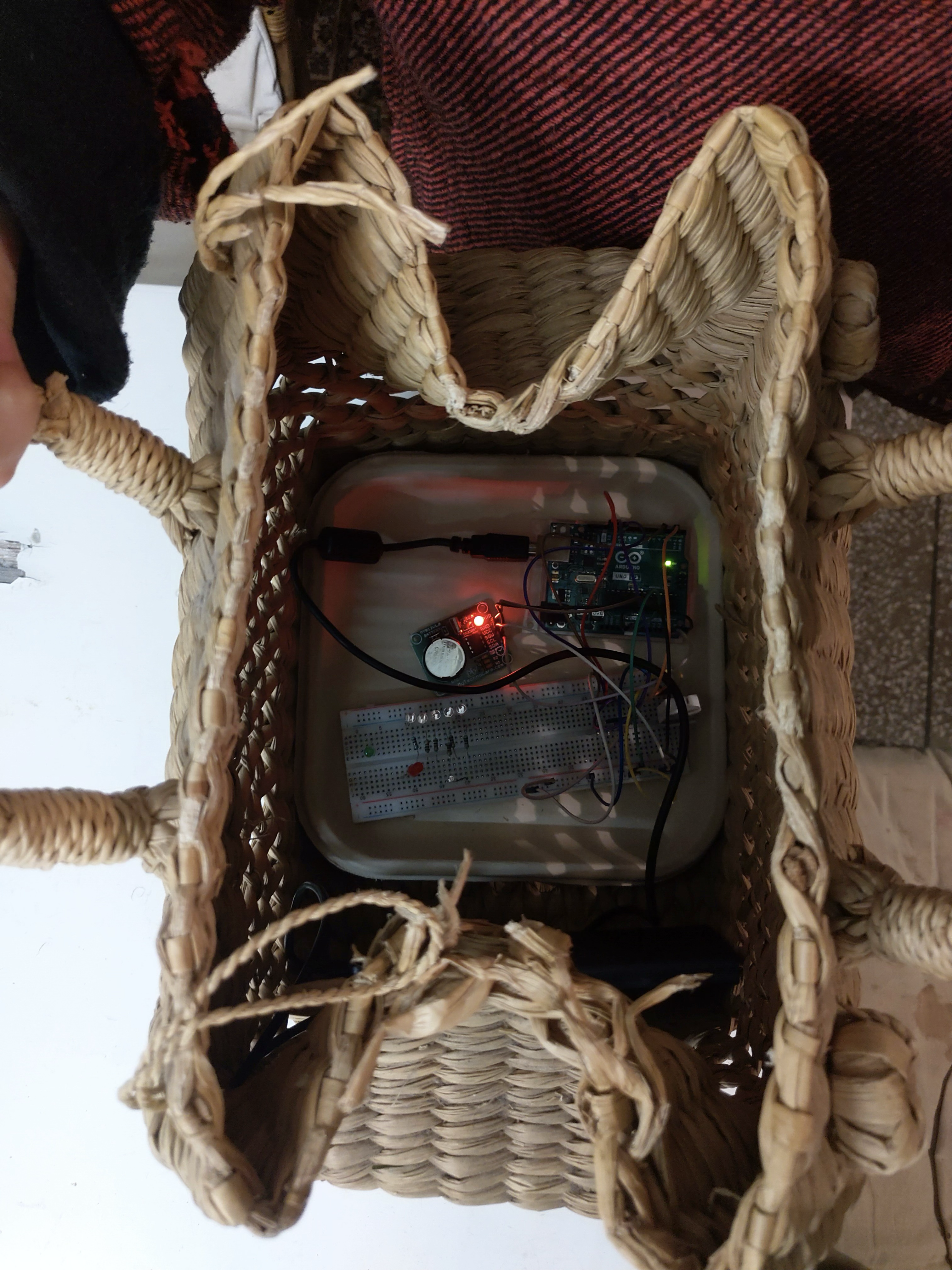

weather-station-01 weather-station-03 weather-station-04-installed-picnic-basket

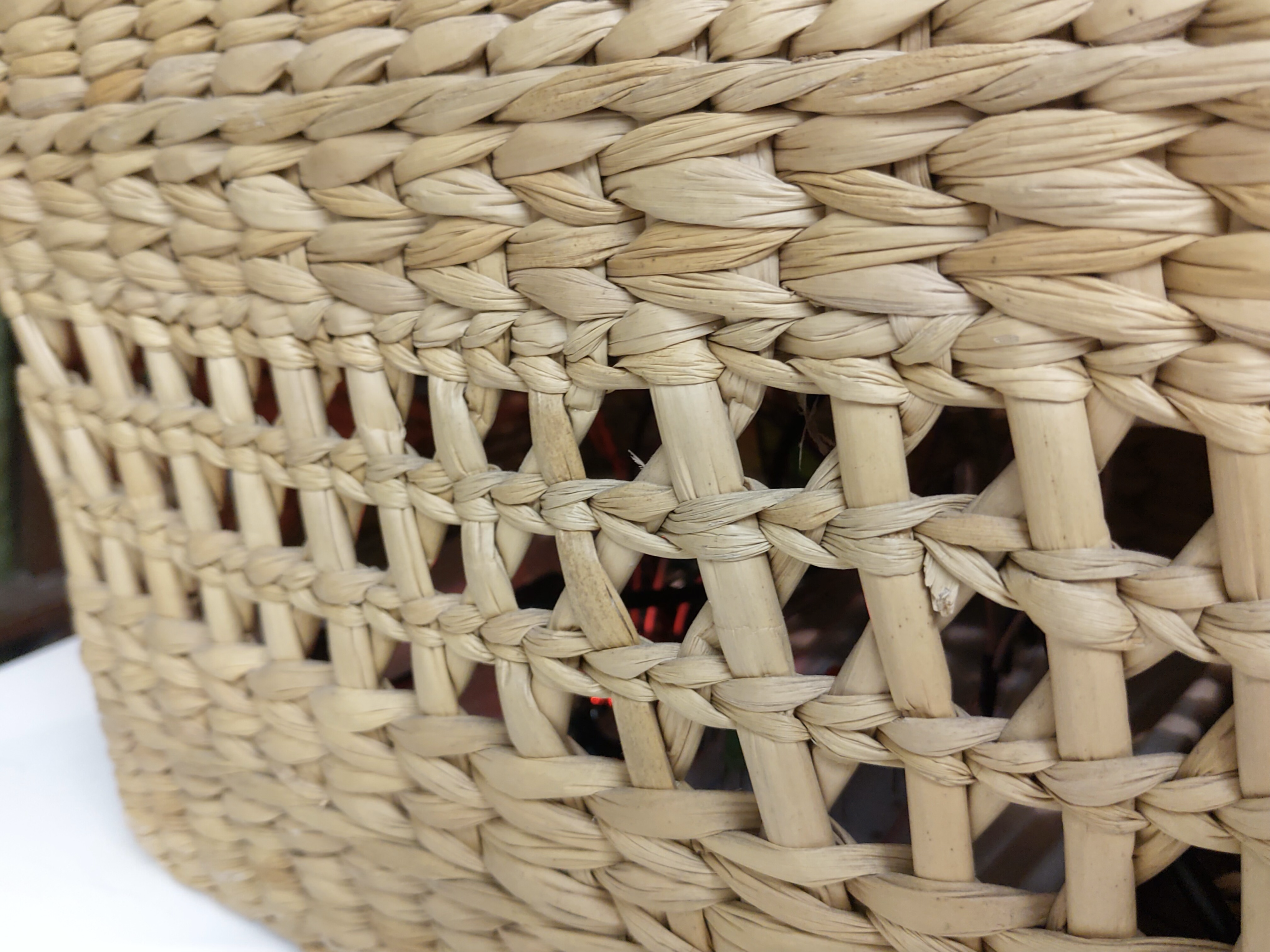

Weather station installed in a picnic basket, which keeps the electronics shielded but lets the sensors be exposed to the environment.

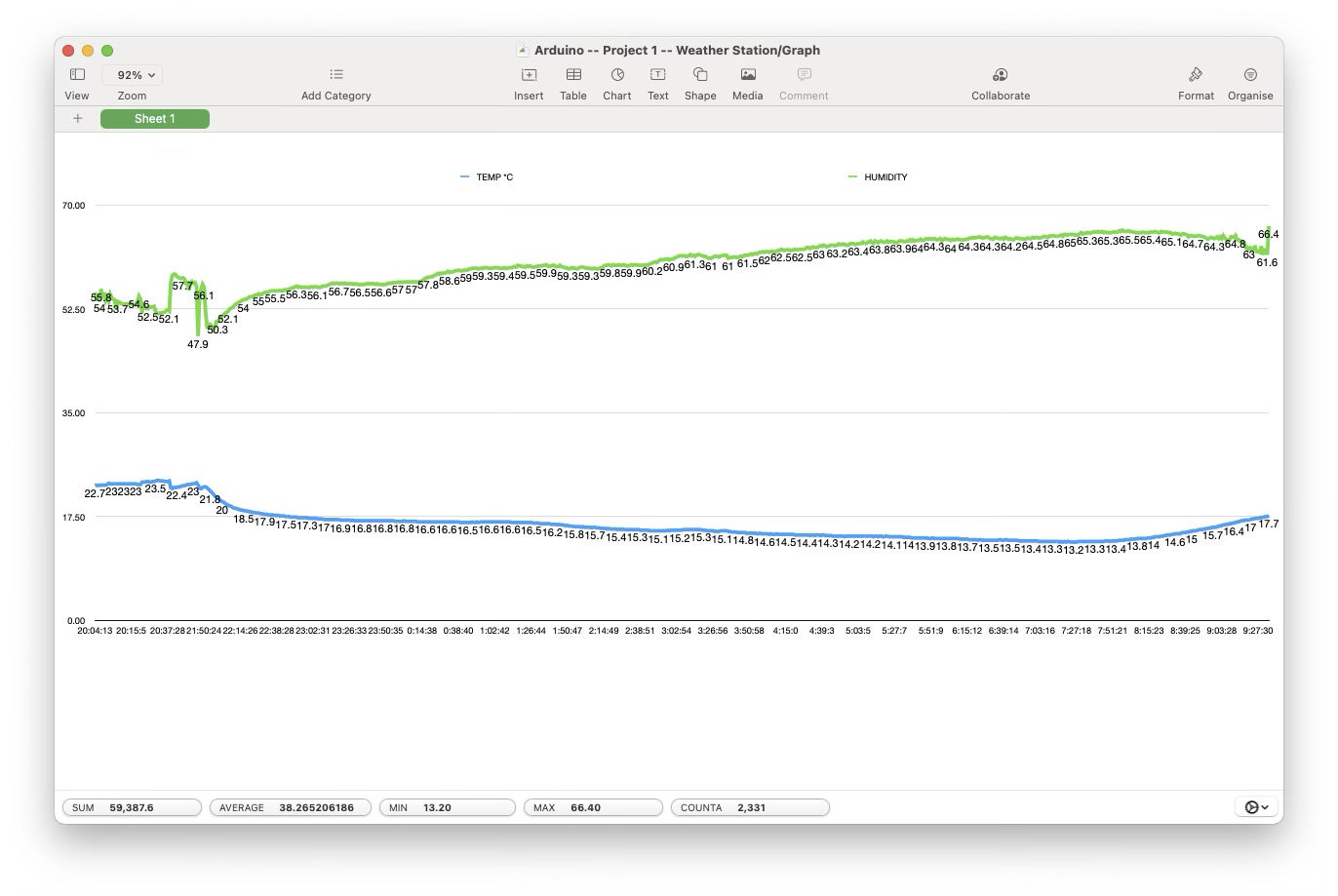

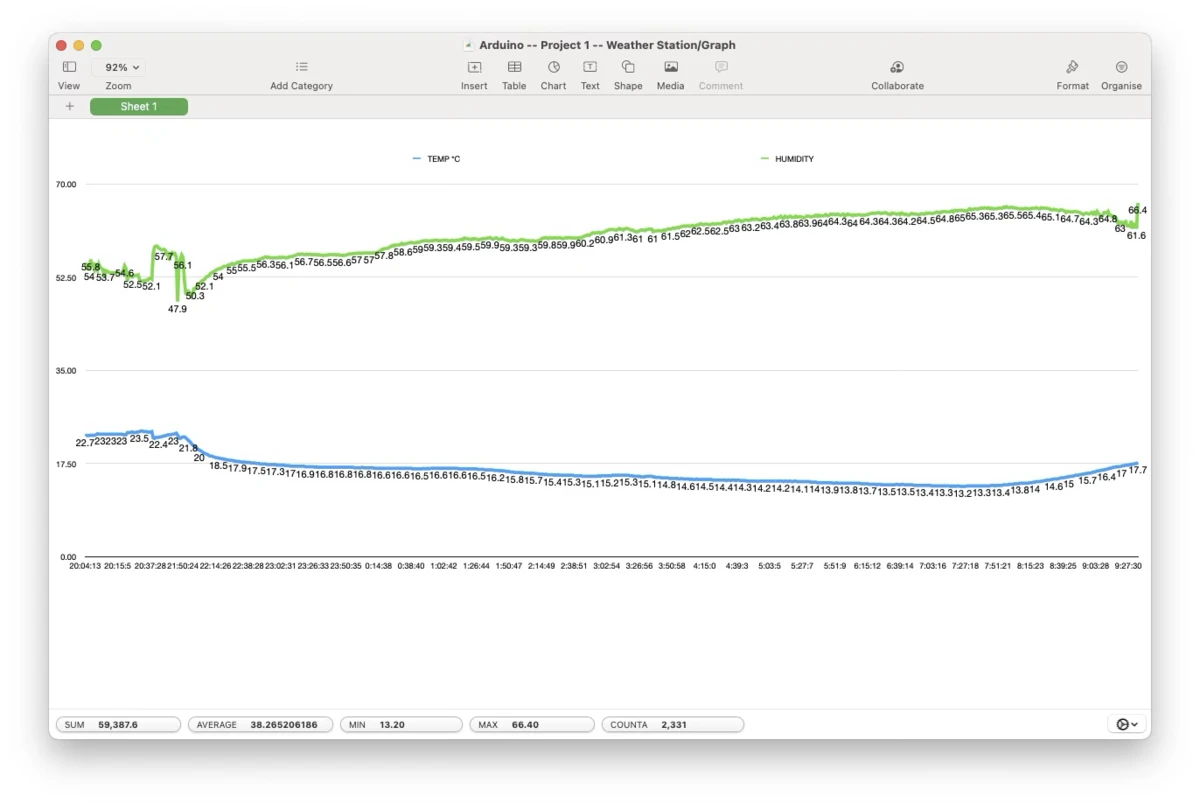

weather-station-05-data-collected-graphed
Data collected and graphed for temperature and humidity overnight. The picnic basket was left out in the balcony with all windows open.

Connections
